Hydrostatic hose &
pressure testing

Pressure
reveals
the truth.

BASED IN SOUTH HUTCHINSON, KANSAS

Hydrostatic hose & pressure testing up to 7,000 PSI.
Testing at our South Hutchinson, Kansas shop, with local hose drop-off and pickup and custom stainless steel identification tags.

Build a testing inquiry Explore our focus ↓
UP TO 7,000 PSI / HOSE ASSEMBLIES / SHOP SERVICE
INVICTUS / UNDER PRESSURE
ILLUSTRATIVE PRESSURE
0
PSI / DEMO CYCLE
01 PRESSURIZE02 HOLD03 RELEASE
ILLUSTRATIVE PRESSURE / TIME1,500 PSI DEMO
CONTROLLED PRESSURE.
DOCUMENTED RESULTS.Shop-based hose & assembly testing.
Animated illustration.
Not live test data.
Timing & pressure are examples.
Built around your testing requirements.01 / DEFINE THE SCOPE02 / CONFIRM THE TEST03 / PLAN THE HANDOFF
One assembly. A connected record.

Test it.
Document it. Identify it.

A pressure reading is part of the story. The assembly ID connects the agreed test record to the stainless identification tag—so the information stays with the hose.

Under pressure.

Test pressure, hold duration, and acceptance criteria are established for the assembly and agreed scope.

Explore testing ↗

On the record.

ILLUSTRATIVE ASSEMBLY RECORD
ASSEMBLY IDINV-123-0010-02
EXAMPLE DATE10/01/2026
EXAMPLE PRESSURE1,500 PSI

Keep assembly identification and agreed test information together in the required documentation.

View sample report ↗

It stays with the hose.

SN: INV-123-0010-02
TEST DATE: 10/01/2026
TEST PRESS: 1500 PSI

Laser-marked stainless tags carry the selected information. Preview one layout or send your complete inventory.

Build a sample tag ↗
ILLUSTRATIVE WORKFLOW • Fictional example information.
Documentation and tag fields are confirmed with each order.
Our focus

Industrial hose testing.
Your requirements.

Explore hose testing, records & bulk orders ↗

A useful testing inquiry starts with the details: what needs to be tested, the required pressure, and the acceptance criteria for your application.

01 / HOSE

Hydrostatic hose testing

Bring the conversation down to the assembly level. Share hose type, diameter, length, end connections, and quantity so the testing scope can be reviewed.

Hose assemblies · Shop testing
02 / PRESSURE

Assembly pressure testing

Have a specific pressure testing requirement? Identify the item and provide the applicable manufacturer instructions or project specification for a scope review.

Project-specific requirements
Equipment & identification

Test the assembly.
Mark the details.

Hydrostatic testing up to 7,000 PSI, paired with stainless steel tags laser-marked with the testing information you specify.

01 / TESTING EQUIPMENT

Hydrorex M20-7000

Our shop uses a Hydrorex M20-7000 electric pressure test unit with a 20 HP motor. We offer hydrostatic testing up to 7,000 PSI, using separate manifolds for lower- and higher-pressure testing.

Test pressure is selected for the assembly ratings and applicable testing requirements.
02 / CUSTOM STAINLESS STEEL TAGS

Your information. On your tag.

We use a Cloudray laser with LightBurn software to mark 2.5″ × 1.5″ dual-slotted stainless steel ID tags with customer-selected testing information. Each tag is secured with two stainless steel zip ties. Specify the wording and identification fields you need.

2.5″ × 1.5″ · Two slots · Two stainless steel zip ties

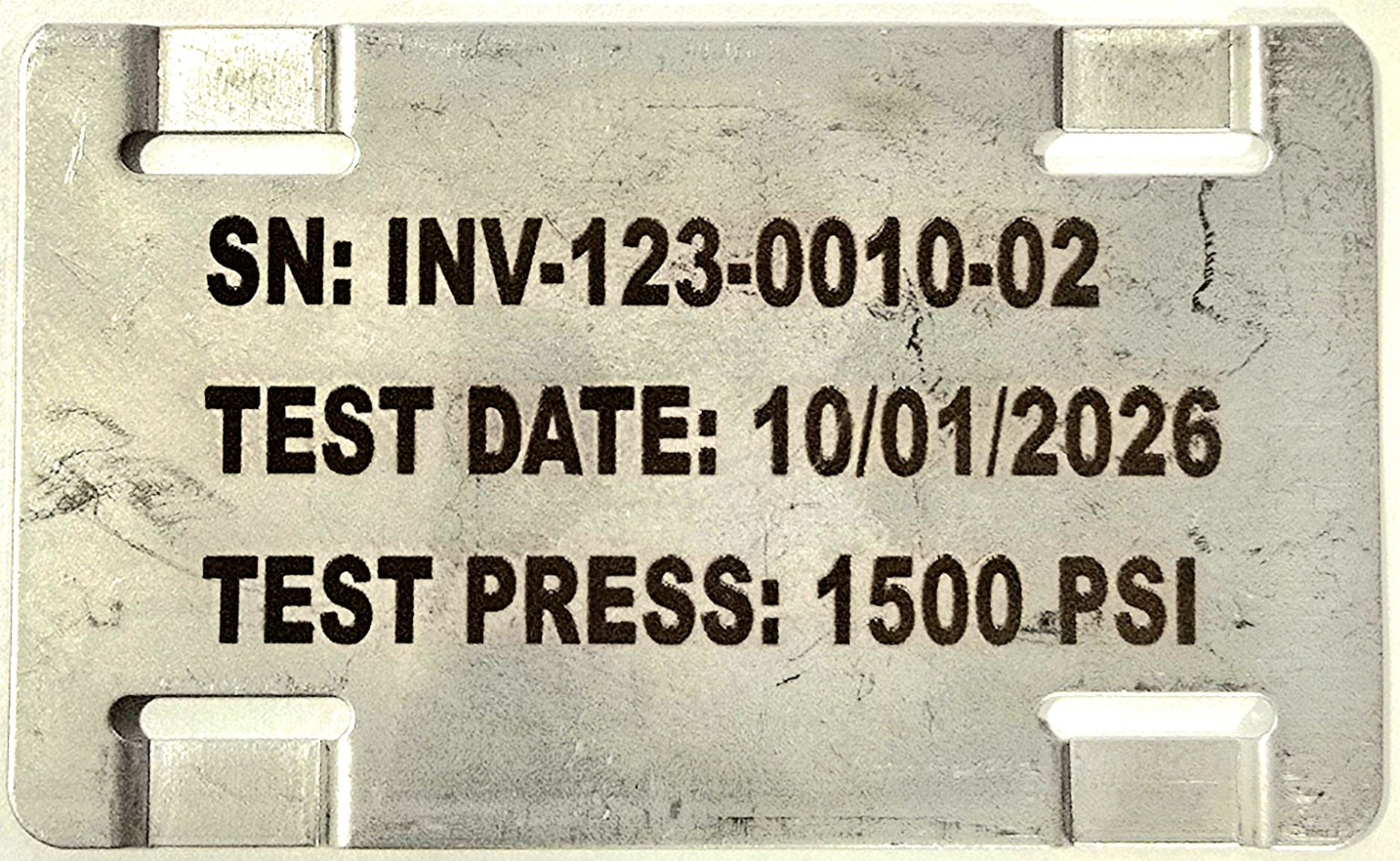

Example stainless identification tag showing assembly ID INV-123-0010-02, test date, and 1500 PSI test pressure
EXAMPLE STAINLESS IDENTIFICATION TAG
ASSEMBLY ID · TEST DATE · TEST PRESSURE
Illustrative information only. Tag wording and test pressure are specific to each agreed order.

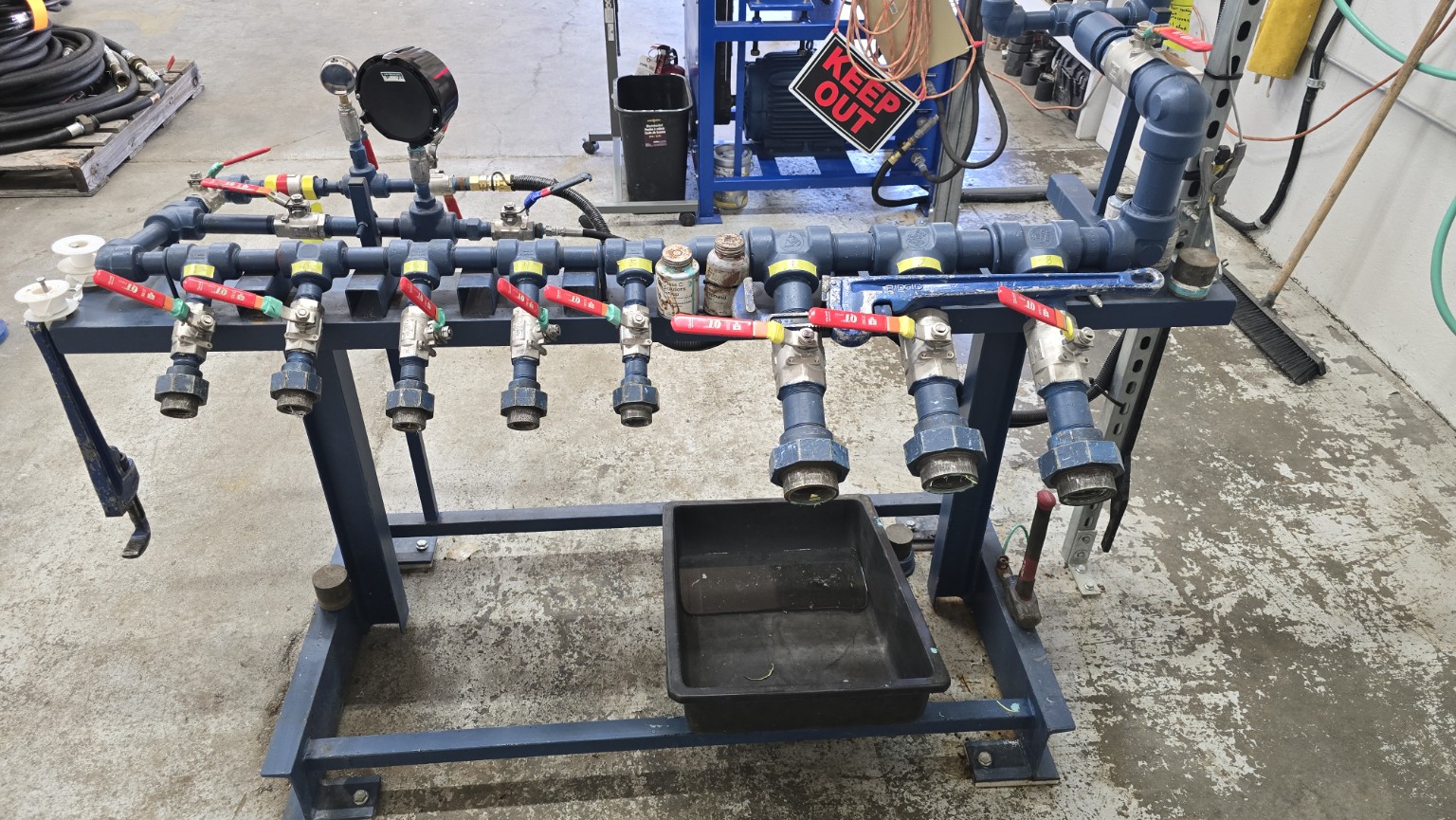

INVICTUS shop manifold station used for testing below 2,000 PSI
SHOP TESTING STATION / BELOW 2,000 PSI
THE RIGHT SETUP FOR THE TEST

Separate manifolds.
One testing service.

The pictured shop station is used for tests below 2,000 PSI. A separate higher-pressure manifold supports our testing service up to 7,000 PSI.

Provide the required test pressure and assembly details when requesting testing.

Plan your testing inquiry ↗
A clear starting point

Define it.
Then test it.

No guesswork in the inquiry. Establish the assembly details and testing requirements before arranging shop delivery.

01 / SHARE

Tell us what you have.

Identify the assembly, quantity, end fittings, and known condition. Include the service application and any relevant history.

02 / ALIGN

Specify what you need.

Provide the required test pressure, hold duration, acceptance criteria, and any requested records. If something is unknown, flag it for review.

03 / ARRANGE

Drop off. Test. Pick up.

Local customers can drop off and pick up hoses at our South Hutchinson, Kansas shop. Contact INVICTUS before delivery to confirm assembly requirements, scope, pricing, and scheduling.

Testing scope, assembly suitability, and any documentation requirements must be confirmed before scheduling. A testing inquiry does not establish acceptance or certify an assembly.
Design your identification tag

See what fits.
Before you send it.

Enter up to three lines and see the space they occupy on a 2.5″ × 1.5″ tag. Text stays at the reference height; long lines are flagged instead of shrunk.

CUSTOM TAG LAYOUTTHREE LINES

Edit the full wording of each line. Date and pressure placeholders describe the requested layout; final test information is completed by INVICTUS.

LIVE TAG PREVIEW2.5″ × 1.5″
Customer identification tag layout previewThree editable lines within the approximately 19.9 mm maximum text-block height and a provisional width guide. Slots and ties are illustrated; final production layout requires review.
REFERENCE TEXT HEIGHT 2.98 mmTEXT BLOCK GUIDE 51.5 mm wide · 19.89 mm max height

Maximum text-block height is approximately 19.9 mm, confirmed by INVICTUS from the LightBurn layout. The preview allows approximately 51.5 mm between the illustrated tie areas. Text scale is calibrated to the 47.38 mm-wide LightBurn example; that example width is not treated as the available-space limit. This fixed scale applies to every line; text is not automatically shrunk to fit. Other wording remains an estimate until production review. Slots and ties are illustrative. INVICTUS reviews the final layout.

Start the conversation

What needs
to be tested?

Put the key details in one place. Build an inquiry you can save and share with INVICTUS Industries.

Get in touchoffice@invictus-industries.com ↗

  • Hose size, length, and end connections
  • Assembly quantity and service application
  • Test specification and pressure requirements
  • Requested completion date and records
  • Custom stainless steel tag information — preview your layout
TESTING INQUIRYINVICTUS / 01

Assembly / item details

Group identical items together. Add another group for a different size, length, or connection. Choose common options or select “Other — list below” to enter a custom value. Unknown details can be reviewed with INVICTUS. Hose categories describe your inquiry; testing suitability is confirmed during scope review.

If yes, enter the wording in the live tag designer and click Confirm tag & add to inquiry. We receive that exact preview with your inquiry. For bulk orders, you may choose to review tags from your inventory without creating a mockup. A confirmed sample illustrates one layout; it does not prove every inventory entry fits.

Send your assembly details and any confirmed tag mockup to office@invictus-industries.com. Sending an inquiry does not book testing. Wait for INVICTUS to confirm receipt, scope and scheduling.

Testing documentation

A record for
each assembly.

See an example of our hose hydrostatic test report. Assembly identification, hose details, inspection results, test pressure and batch information are recorded together. Confirm your required report format and documentation scope before scheduling.

Sample hydrostatic test report

The sample shows the report structure using fictional customer and assembly details. It is an illustration of the format, not an actual test record. Example pressures do not specify the correct test pressure for any hose.

View sample report (PDF) ↗
Before you start

A few practical
questions.

Can I drop off and pick up hoses locally?

Yes. INVICTUS Industries provides hydrostatic hose testing at our physical shop in South Hutchinson, Kansas. Local customers can drop off and pick up hose assemblies. Contact us before delivery to confirm testing requirements and scheduling.

Can I submit a complete hose inventory?

Yes. Choose the large-order option to upload an Excel spreadsheet, CSV, or PDF up to 4 MB, or choose to email your list later. Include existing hose IDs. A representative tag preview is optional for bulk inquiries.

Can you test hoses already in service?

Submit the existing IDs, condition, service history, and available manufacturer or testing records. Suitability and the required testing scope must be reviewed before INVICTUS accepts the order.

What pressure range can you test?

We offer hydrostatic testing up to 7,000 PSI. Our pictured shop station is used below 2,000 PSI, with a separate manifold for higher-pressure testing. Each test pressure is selected according to assembly ratings and the applicable test requirements.

What if I don’t know the test pressure?

Mark it as unknown and identify the assembly and application. Include any manufacturer information or project testing specification you have so the requirement can be reviewed.

Can I arrange on-site testing?

This website focuses on shop-based testing. Any request outside that scope requires a separate discussion with INVICTUS.

Can you customize stainless steel tags?

Yes. Our 2.5″ × 1.5″ dual-slotted stainless steel ID tags are laser-marked with customer-selected testing information and secured with two stainless steel zip ties. Include your desired fields and wording in the inquiry.

What if I need a specific report or test record?

List the required record, format, acceptance criteria, and governing specification in your inquiry. Confirm the documentation scope before scheduling.

Does this form book a test?

No. It sends an inquiry with your assembly details and any confirmed tag mockup. Scope, suitability, pricing, and scheduling need direct confirmation from INVICTUS before delivery.
